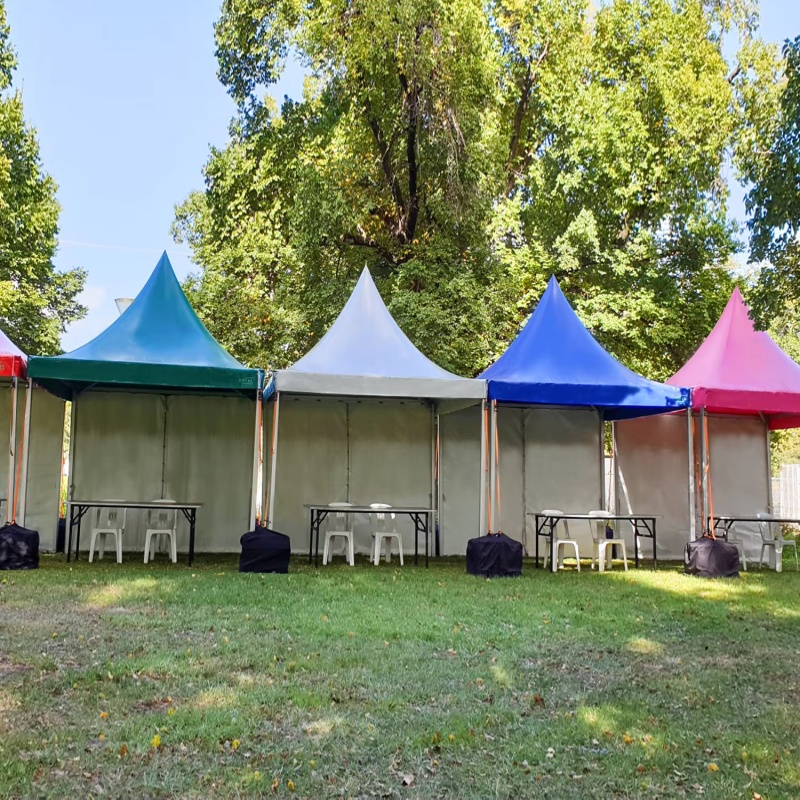

Outdoor Garden Pagoda Flea Market Tent for Party or Reception 5X5m
The Junming pagoda tent is available in a range of sizes—3x3m, 4x4m, 5x5m, 6x6m, 8x8m, and 10x10m—to suit diverse event needs. Compared to large tents, it offers greater size flexibility. When used individually, it serves as an ideal entrance for major event tents, a reception tent for weddings, a temporary space for outdoor promotions, or a leisure room in a backyard. When multiple pagodas are combined, they form a tent group that meets requirements for special shapes while providing large spaces, making them perfect for trade show booths, weddings, and other events.
Specifications
| Type | Width(m) | Bay distance (m) | Eave height (m) | Ridge height (m) | Main frame profile (mm) |
|---|---|---|---|---|---|
| JMT-3 | 3 | 3 | 2.3 | 3.9 | 48x84x3 |
| JMT-4 | 4 | 4 | 2.3 | 4.5 | 48x84x3 |
| JMT-5 | 5 | 5 | 2.5 | 5.1 | 48x100x3 |
| JMT-6 | 6 | 6 | 2.5 | 5.6 | 68x122x3 |
| JMT-8 | 8 | 4 | 2.5 | 6.1 | 68x122x3 |
| JMT-10 | 10 | 5 | 2.5 | 6.6 | 68x122x3 |
The size can be customized as your wish, for example, 12x12m, 3m eave height.
Competitive Advantage:
- Modular type, the tent can be extended or dismantled to several small tents.
- Easy to be assembled and dismantled.
- No pole inside, 100% space available.
- The aluminum frame will never get rusty with life span more than 15 years.
- The PVC cover is waterpprof, fireproof with life span 6-8 years.
- Can be used in bad circumstance.
Key Characters
| Frame part | Main parts: Aluminum alloy | Spare parts: Durable galvanized steel. All aluminum components are technically anodized and all steel parts are well hot-dip galvanized. |
|---|
| Cover part | The roof and sidewall cover: double coated PVC fabric. The weight of fabric is from 650g/sqm to 850g/sqm. |
|---|
| Side wall | Performance: Waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc. Material options: PVC wall, glass wall, sandwich panels, ABS panels, etc. |
|---|
| Fabric color option | White, transparent, green, yellow, red, blue, gray, black and customized |
|---|---|
| Applications | Wedding, events, temporary warehouse & workshop, exhibitions, church and other outdoor activities |
| Ground Situations | Grassland, sandy land, cement ground, marble ground, etc. |
|---|---|
| Fixing Solutions | Expansion screw, steel nail, weight plate, semi-permanent fixing, etc. |
| Wind load | 80-100km/h |
|---|---|
| Place of origin | Changzhou, China |
