Temporary Structure Tent
Professional warehouse tent, wedding event marquee & sports venue hall

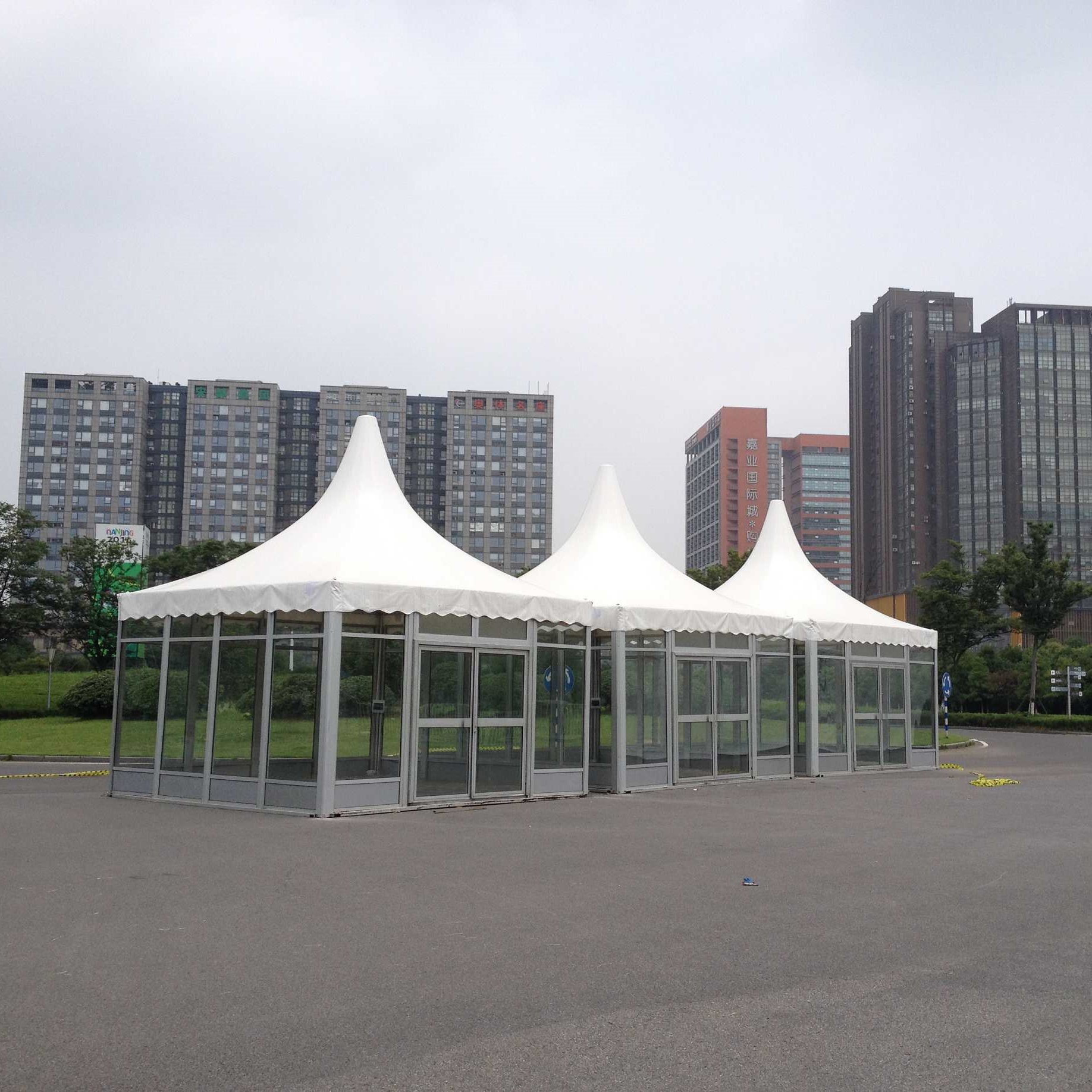

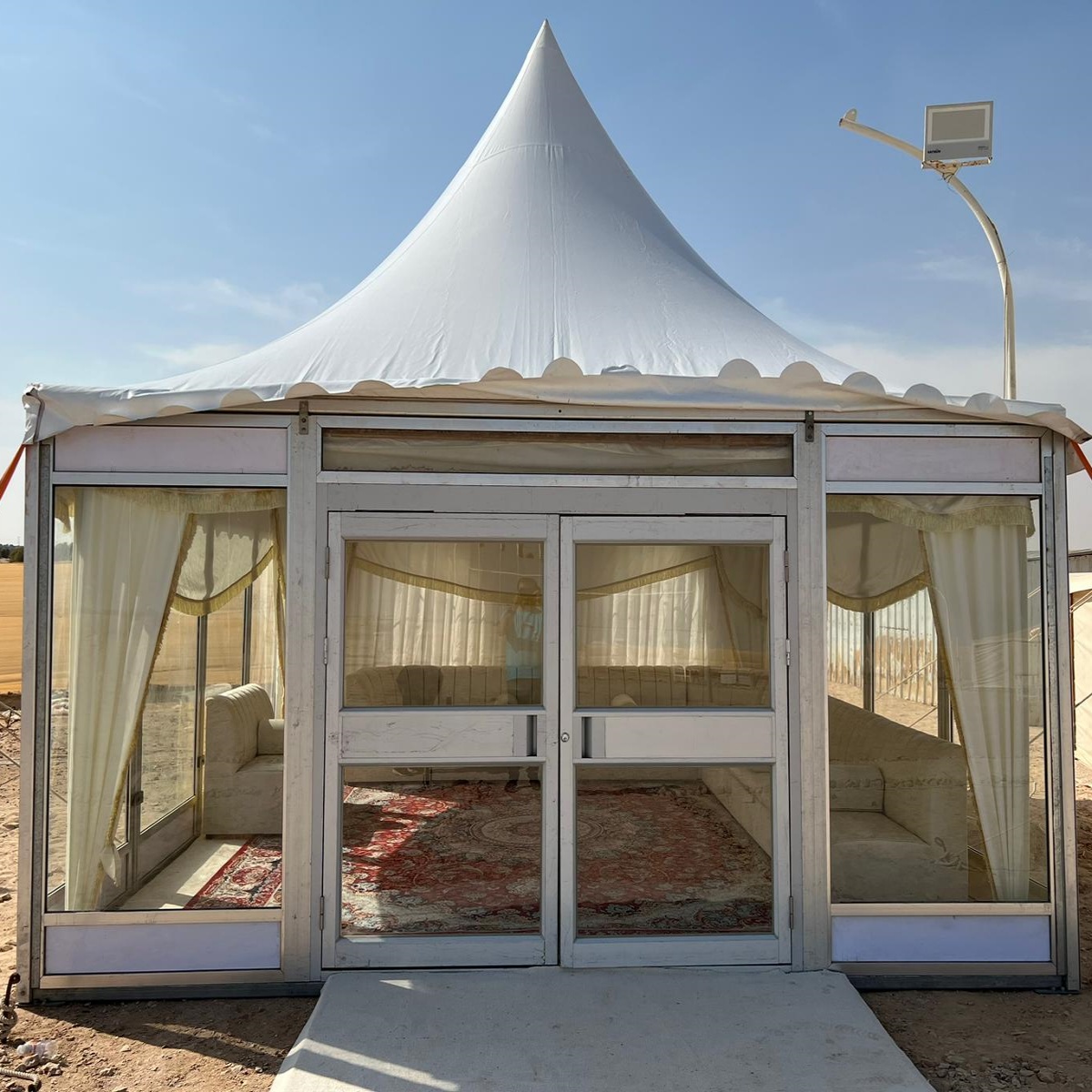

Event Pagoda Tent With Clear Glass Wall
The Exhibition Pagoda Tent features a high-strength aluminium alloy frame combined with premium canvas material, offering wind, rain and UV resistance. For tents for exhibition requiring frequent use, this structure is not only durable but also allows for repeated assembly and disassembly, reducing overall operating costs. Many exhibition organisers and participating companies prioritise the Exhibition Pagoda Tent as their core display space.
Specifications
| Type | Width(m) | Bay distance (m) | Eave height (m) | Ridge height (m) | Main frame profile (mm) |
|---|---|---|---|---|---|
| JMT-3 | 3 | 3 | 2.3 | 3.9 | 48x84x3 |
| JMT-4 | 4 | 4 | 2.3 | 4.5 | 48x84x3 |
| JMT-5 | 5 | 5 | 2.5 | 5.1 | 48x100x3 |
| JMT-6 | 6 | 6 | 2.5 | 5.6 | 68x122x3 |
| JMT-8 | 8 | 4 | 2.5 | 6.1 | 68x122x3 |
| JMT-10 | 10 | 5 | 2.5 | 6.6 | 68x122x3 |
The size can be customized as your wish, for example, 12x12m, 3m eave height.
Competitive Advantage:
- Modular type, the tent can be extended or dismantled to several small tents.
- Easy to be assembled and dismantled.
- No pole inside, 100% space available.
- The aluminum frame will never get rusty with life span more than 15 years.
- The PVC cover is waterpprof, fireproof with life span 6-8 years.
- Can be used in bad circumstance.
Key Characters
| Frame part | Main parts: Aluminum alloy | Spare parts: Durable galvanized steel. All aluminum components are technically anodized and all steel parts are well hot-dip galvanized. |
|---|
| Cover part | The roof and sidewall cover: double coated PVC fabric. The weight of fabric is from 650g/sqm to 850g/sqm. |
|---|
| Side wall | Performance: Waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc. Material options: PVC wall, glass wall, sandwich panels, ABS panels, etc. |
|---|
| Fabric color option | White, transparent, green, yellow, red, blue, gray, black and customized |
|---|---|
| Applications | Wedding, events, temporary warehouse & workshop, exhibitions, church and other outdoor activities |
| Ground Situations | Grassland, sandy land, cement ground, marble ground, etc. |
|---|---|
| Fixing Solutions | Expansion screw, steel nail, weight plate, semi-permanent fixing, etc. |
| Wind load | 80-100km/h |
|---|---|
| Place of origin | Changzhou, China |
Optional Accessories:
Accessories:
Drapery Curtains
Ceiling Chandelier
ABS Walls
Sandwich Walls
Glass Door
