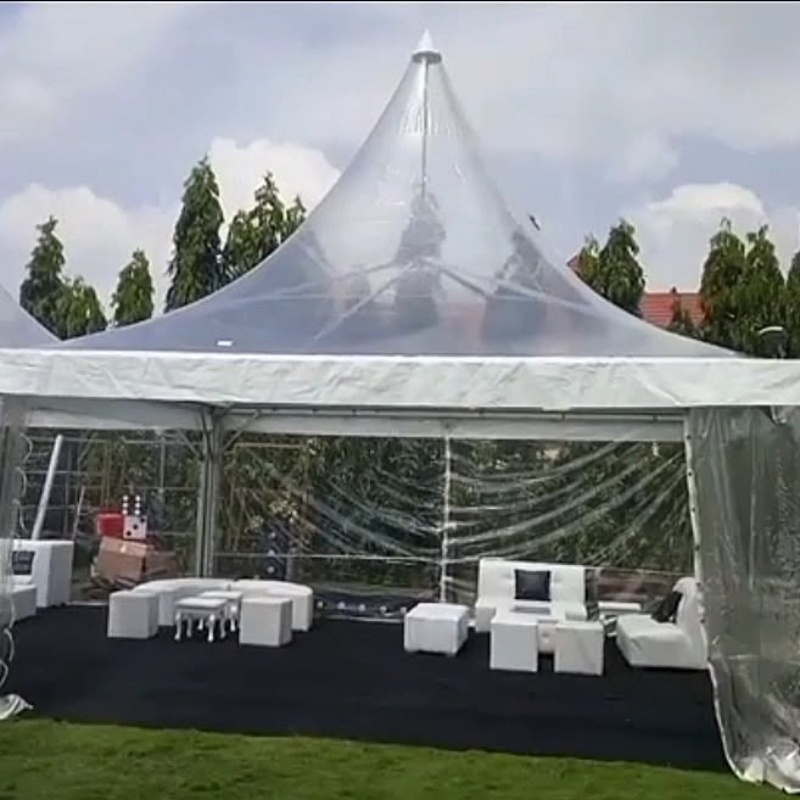

Transparent Pagoda Tent with Clear Roof for Lawn Party
Transparent pagoda tent with clear roof is very suitable for lawn party. They are available in various sizes, ranging from 3mx3m-10mx10m, and can also be customized according to your size. Perfect for home gardens, exhibitions, trade shows, events, and small parties. Whether used as a standalone structure or connected with rain gutters for larger setups, the Pagoda Tent delivers unique charm in any setting.
Specifications
| Type | Width(m) | Bay distance (m) | Eave height (m) | Ridge height (m) | Main frame profile (mm) |
|---|---|---|---|---|---|
| JMT-3 | 3 | 3 | 2.3 | 3.9 | 48x84x3 |
| JMT-4 | 4 | 4 | 2.3 | 4.5 | 48x84x3 |
| JMT-5 | 5 | 5 | 2.5 | 5.1 | 48x100x3 |
| JMT-6 | 6 | 6 | 2.5 | 5.6 | 68x122x3 |
| JMT-8 | 8 | 4 | 2.5 | 6.1 | 68x122x3 |
| JMT-10 | 10 | 5 | 2.5 | 6.6 | 68x122x3 |
The size can be customized as your wish, for example, 12x12m, 3m eave height.
Competitive Advantage:
- Modular type, the tent can be extended or dismantled to several small tents.
- Easy to be assembled and dismantled.
- No pole inside, 100% space available.
- The aluminum frame will never get rusty with life span more than 15 years.
- The PVC cover is waterpprof, fireproof with life span 6-8 years.
- Can be used in bad circumstance.
Key Characters
| Frame part | Main parts: Aluminum alloy | Spare parts: Durable galvanized steel. All aluminum components are technically anodized and all steel parts are well hot-dip galvanized. |
|---|
| Cover part | The roof and sidewall cover: double coated PVC fabric. The weight of fabric is from 650g/sqm to 850g/sqm. |
|---|
| Side wall | Performance: Waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc. Material options: PVC wall, glass wall, sandwich panels, ABS panels, etc. |
|---|
| Fabric color option | White, transparent, green, yellow, red, blue, gray, black and customized |
|---|---|
| Applications | Wedding, events, temporary warehouse & workshop, exhibitions, church and other outdoor activities |
| Ground Situations | Grassland, sandy land, cement ground, marble ground, etc. |
|---|---|
| Fixing Solutions | Expansion screw, steel nail, weight plate, semi-permanent fixing, etc. |
| Wind load | 80-100km/h |
|---|---|
| Place of origin | Changzhou, China |
Optional Accessories:
Accessories:
Drapery Curtains
Ceiling Chandelier
ABS Walls
Sandwich Walls
Glass Door
