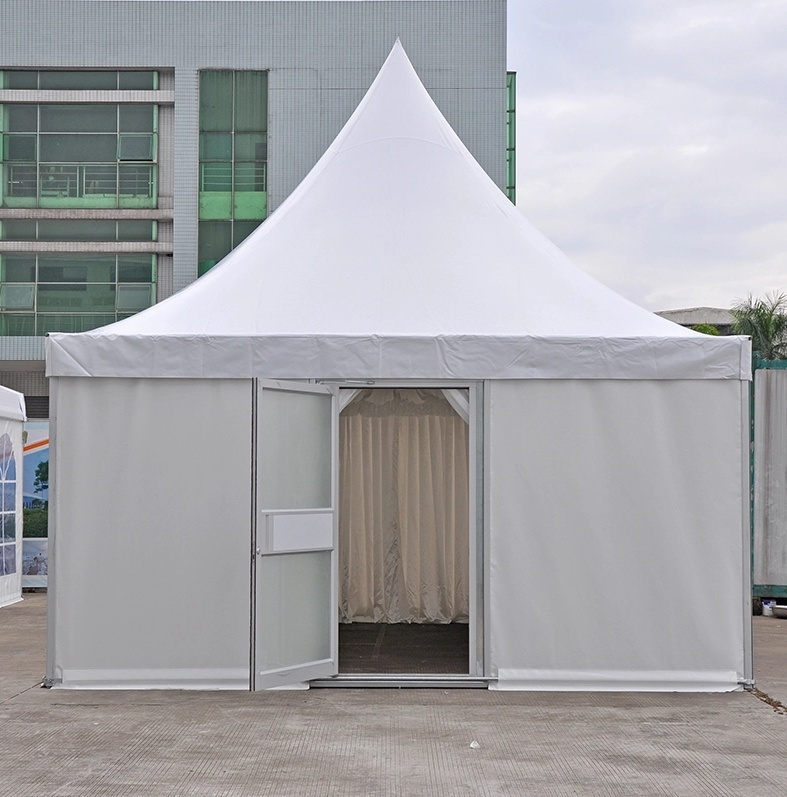

Pagoda Tent with Glass Door for Outdoor Portable Shop
Pagoda tent with glass door means you can use it as portable shop.
This type of Pagoda tent uses a 3 channel 65x65x2.5mm aluminum alloy. The standard 8x8m and 10x10m Pagoda tent with a 2.6 side height use a 4 channel 122x68x3mm aluminum alloy and the wind loading is 80km/h (0.3kn/m2).
The new fixing method has got design Patents. It is a new fixing method which has massively reduced the installing time and needs no help from a big machine and can avoid sliding out. Easy to install and dismantle.
The optional accessories for the pagoda tents are glass walling system, door units, flooring system, ground anchors, lining, etc. You can use pagoda tents by a single unit or combine to enlarge space and become a special structure style with a rain gutter. Our pagoda tent can meet different levels of demand and is a more flexible choice for outdoor activities.
Specifications
| Type | Width(m) | Bay distance (m) | Eave height (m) | Ridge height (m) | Main frame profile (mm) |
|---|---|---|---|---|---|
| JMT-3 | 3 | 3 | 2.3 | 3.9 | 48x84x3 |
| JMT-4 | 4 | 4 | 2.3 | 4.5 | 48x84x3 |
| JMT-5 | 5 | 5 | 2.5 | 5.1 | 48x100x3 |
| JMT-6 | 6 | 6 | 2.5 | 5.6 | 68x122x3 |
| JMT-8 | 8 | 4 | 2.5 | 6.1 | 68x122x3 |
| JMT-10 | 10 | 5 | 2.5 | 6.6 | 68x122x3 |
The size can be customized as your wish, for example, 12x12m, 3m eave height.
Competitive Advantage:
- Modular type, the tent can be extended or dismantled to several small tents.
- Easy to be assembled and dismantled.
- No pole inside, 100% space available.
- The aluminum frame will never get rusty with life span more than 15 years.
- The PVC cover is waterpprof, fireproof with life span 6-8 years.
- Can be used in bad circumstance.
Key Characters
| Frame part | Main parts: Aluminum alloy | Spare parts: Durable galvanized steel. All aluminum components are technically anodized and all steel parts are well hot-dip galvanized. |
|---|
| Cover part | The roof and sidewall cover: double coated PVC fabric. The weight of fabric is from 650g/sqm to 850g/sqm. |
|---|
| Side wall | Performance: Waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc. Material options: PVC wall, glass wall, sandwich panels, ABS panels, etc. |
|---|
| Fabric color option | White, transparent, green, yellow, red, blue, gray, black and customized |
|---|---|
| Applications | Wedding, events, temporary warehouse & workshop, exhibitions, church and other outdoor activities |
| Ground Situations | Grassland, sandy land, cement ground, marble ground, etc. |
|---|---|
| Fixing Solutions | Expansion screw, steel nail, weight plate, semi-permanent fixing, etc. |
| Wind load | 80-100km/h |
|---|---|
| Place of origin | Changzhou, China |
Optional Accessories:
Accessories:
Drapery Curtains
Ceiling Chandelier
ABS Walls
Sandwich Walls
Glass Door
