Consulting Solutions For Your Space
Temporary Structure Tent
Professional warehouse tent, wedding event marquee & sports venue hall
High-quality Exhibition and Trade Fair Tents
Production Description

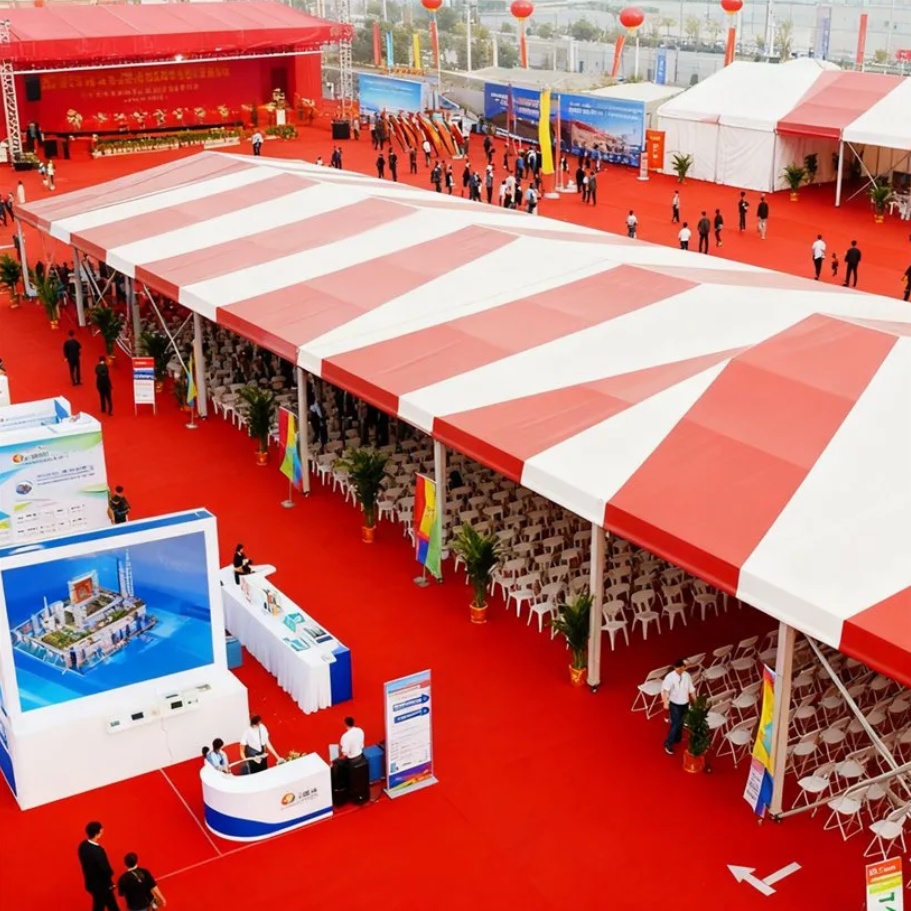

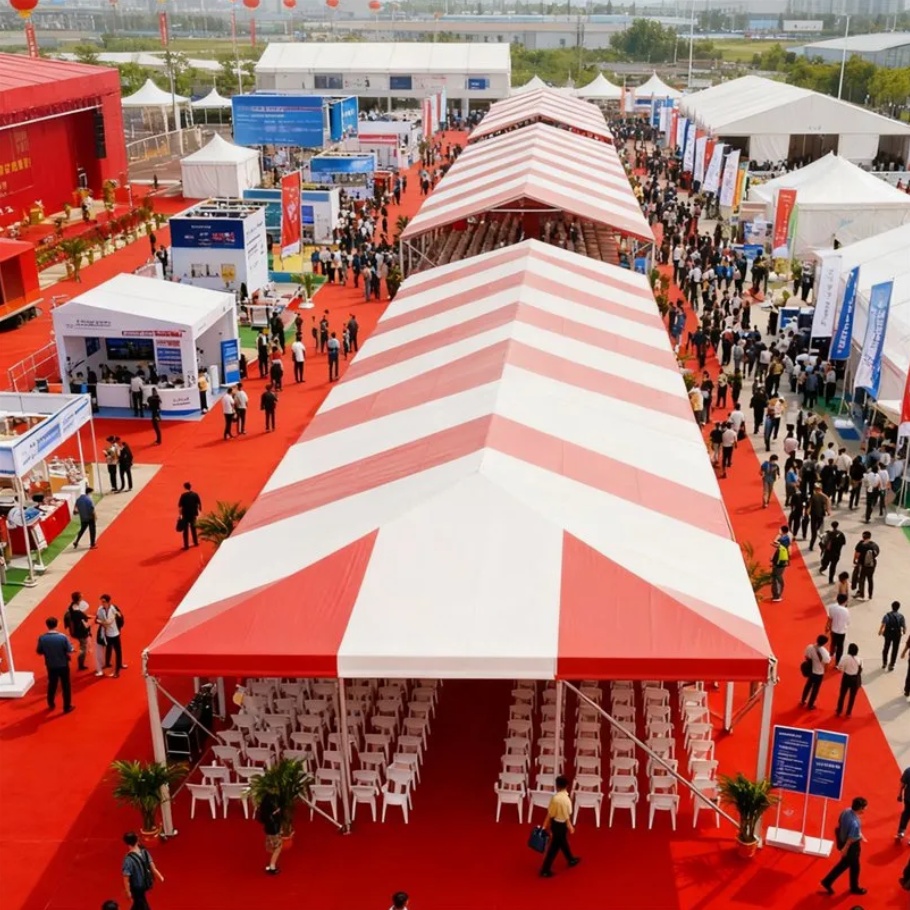

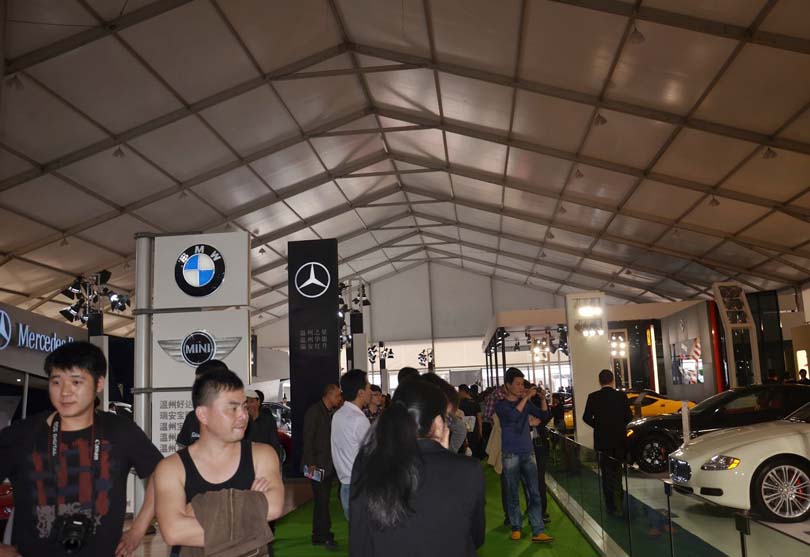

A large event tent can accommodate 2,000 to 5,000 people, making it ideal for outdoor weddings, business conferences, church gatherings, and more. It can also serve as a temporary exhibition hall for auto shows, airshows, flower shows, furniture exhibitions, etc.
In recent years, this type of large tent has been widely used for sports facilities, including football fields, basketball courts, tennis courts, swimming pool covers, and ice skating rinks.
Specifications
Span width:From 3 meters to 50 meters
Eave height:Standard from 2.5m, 3m, 4m to 5m upon width(or special height per requested)
Length:Unlimited, extended by 3m or 5m each bay
| Type | Width (m) | Bay distance (m) | Eave height (m) | Ridge height (m) | Main frame profile (mm) |
| JMEXT6 | 6 | 3 | 3 | 4 | 48x84x3/48x100x3 |
| JMWPT8 | 8 | 3 | 3 | 4.4 | 48x84x3/48x100x3 |
| JMWPT12 | 12 | 5 | 3.5 | 5.4 | 68x122x3 |
| JMWPT15 | 15 | 5 | 4 | 6.4 | 108x150x3/88x166x3 |
| JMWPT18 | 18 | 5 | 4 | 6.9 | 112x203x4/108x150x3 |
| JMWHT25 | 25 | 5 | 4 | 8 | 112x203x4.5 |
| JMWHT30 | 30 | 5 | 5 | 9.8 | 113x259x5 |
| JMWHT35 | 35 | 5 | 5 | 10.2 | 120x300x5 |
| JMWHT40 | 40 | 5 | 6 | 12.4 | 125x300x5 |
| JMWHT50 | 50 | 5 | 6 | 14 | 120x350x5.5 |
| The length can be extended by 5m bay such as 10m,15m,20m,25m,30m… | |||||
Frame System-Stability & Longevity
Main Profile: High-strength Aluminum Alloy 6061/T6.
Connection: Hot-dip galvanized steel components.
Wind Load: 100 km/h – 120 km/h .
Snow Load: 0.5kn/㎡.
Lifespan: 20+ years for the aluminum frame.
Feature: Modular design, no welding required, 100% relocatable.
Premium PVC Fabric Protection
Roof Cover: Weight 850g/sqm (Block-out / Opaque).
Sidewall: Weight 650g/sqm (Translucent) or 850g/sqm.
Fire Safety: DIN 4102 B1, M2; CFM certified.
Temperature Resistance: -30°C to +70°C.
Key Features: Waterproof, UV-resistant, Tear-resistant, Anti-mildew.
Optional Accessories
