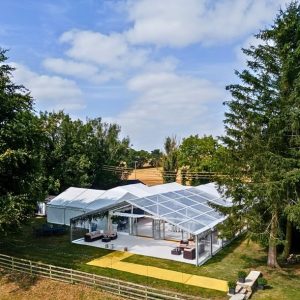

Clear Roof Marquee Tent
Product Description

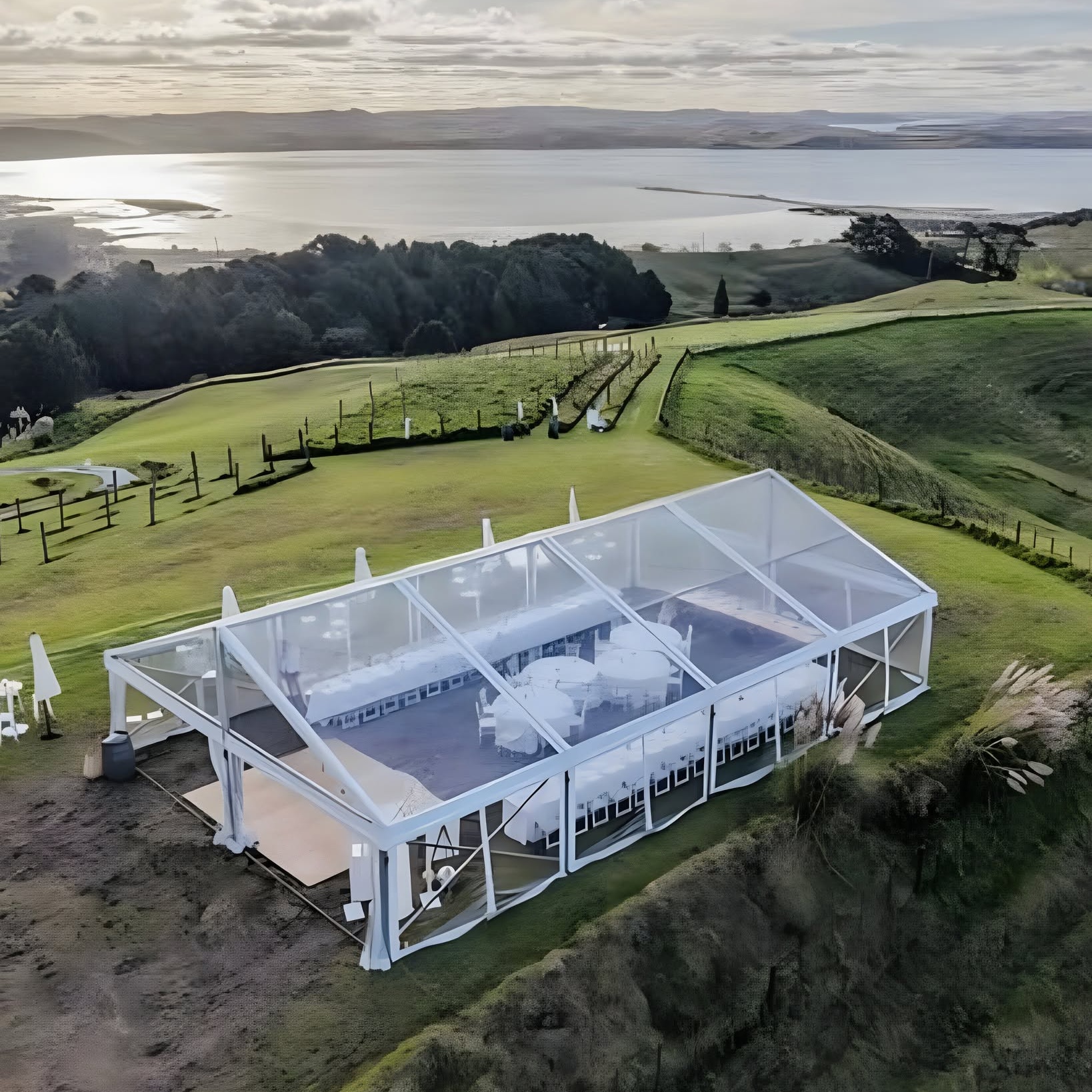

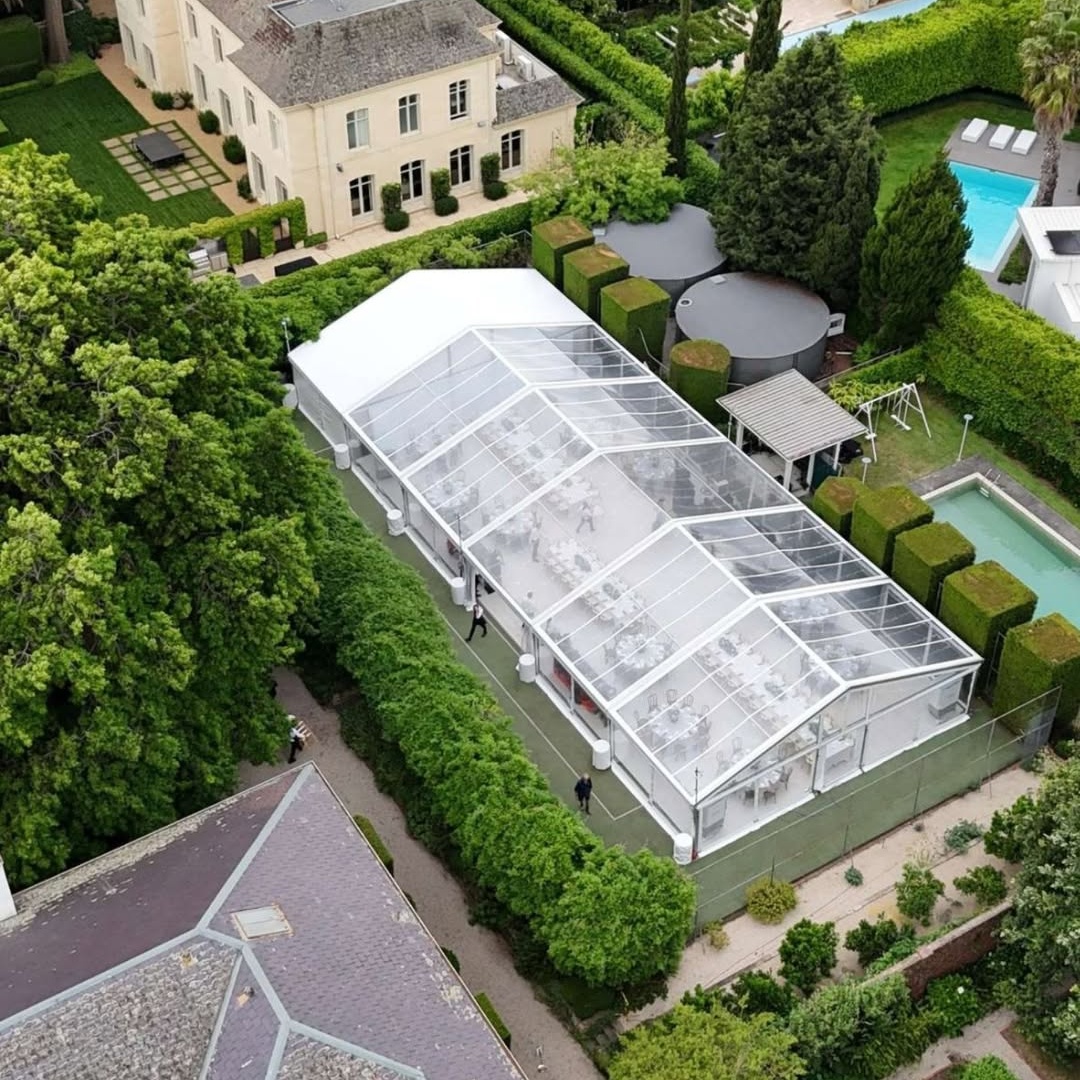

If you want to hold a unique party or wedding, the clear roof marquee tent is a perfect solution. You will be able to see the sky, moon and stars through a clear and transparent roof, to give the guests a comfortable, fashionable and romantic experience.
The span width is from 6m to 50m, length is not limited but modular at 5m/unit to be increased or decreased to accommodate 100, 200, 300, 500, 1000, 2000 capacity as your requirements. And different from other structures, there is no inside columns in our clear roof marquee tent, that means 100% inside space can be utilized.
The clear roof marquee tent is made of hard pressed extruded aluminium and heavy duty transparent PVC fabric that is waterproof, flame retardant, UV resistant, anti-mildew and self-cleaning. It is a strong and durable structure to be safe enough under the big wind and rain weather.
JUNMING TENT can provide variety of optional accessories to decorate this clear roof marquee tent. It can be equipped with glass walls and double wing glass doors at entrance and exit. The clear roof marquee tent, to combine different natural elements and human factors, with linings and curtains, flowers, furniture, etc., as well as the color lighting and beautiful natural environment, to make your outdoor wedding or party more dreamlike and impressive.
Clear Roof Marquee Tent — Specifications & Size
| Clear span width | Eave height | Top height | Bay distance | Main aluminium profile |
|---|---|---|---|---|
| 6m / 39.4ft | 2.5m / 8.2ft | 3.5m / 11.5ft | 3m / 9.8ft | 84x48x3mm / 3.31x1.89x0.12in |
| 8m / 49.2ft | 2.5m / 8.2ft | 3.9m / 12.8ft | 3m / 9.8ft | 84x48x3mm / 3.31x1.89x0.12in |
| 10m / 59.1ft | 2.5m / 8.2ft | 4.3m / 14.1ft | 5m / 16.4ft | 122x68x3mm / 4.41x2.68x0.12in |
| 12m / 65.6ft | 2.5m / 8.2ft | 5.2m / 17.1ft | 5m / 16.4ft | 122x68x3mm / 4.41x2.68x0.12in |
| 15m / 49.2ft | 4m / 13.1ft | 6.4m / 21.0ft | 5m / 16.4ft | 150x108x3mm / 5.91x4.25x0.12in |
| 20m / 65.6ft | 4m / 13.1ft | 7.2m / 23.6ft | 5m / 16.4ft | 203x122x4.5mm / 7.99x4.41x0.16in |
| 25m / 82.0ft | 4m / 13.1ft | 8.0m / 26.2ft | 5m / 16.4ft | 203x122x4.5mm / 7.99x4.41x0.18in |
| 30m / 98.4ft | 5m / 16.4ft | 9.8m / 32.2ft | 5m / 16.4ft | 259x113x5mm / 10.20x4.45x0.20in |
| 35m / 114.8ft | 5m / 16.4ft | 10.5m / 34.4ft | 5m / 16.4ft | 300x120x5mm / 11.81x4.72x0.20in |
| 40m / 131.2ft | 5m / 16.4ft | 11.6m / 38.1ft | 5m / 16.4ft | 300x120x5mm / 11.81x4.72x0.20in |
Length is modular at 5m/unit — can be extended to fit 100–2000+ guests.
✅ No internal columns · 100% usable interior space · Waterproof · Flame retardant · UV resistant Tailored solution
Frame System-Stability & Longevity
Main Profile: High-strength Aluminum Alloy 6061/T6.
Connection: Hot-dip galvanized steel components.
Wind Load: 100 km/h – 120 km/h .
Snow Load: 0.5kn/㎡.
Lifespan: 20+ years for the aluminum frame.
Feature: Modular design, no welding required, 100% relocatable.
Premium PVC Fabric Protection
Roof Cover: Weight 850g/sqm (Block-out / Opaque).
Sidewall: Weight 650g/sqm (Translucent) or 850g/sqm.
Fire Safety: DIN 4102 B1, M2; CFM certified.
Temperature Resistance: -30°C to +70°C.
Key Features: Waterproof, UV-resistant, Tear-resistant, Anti-mildew.
Basic Assembly Steps

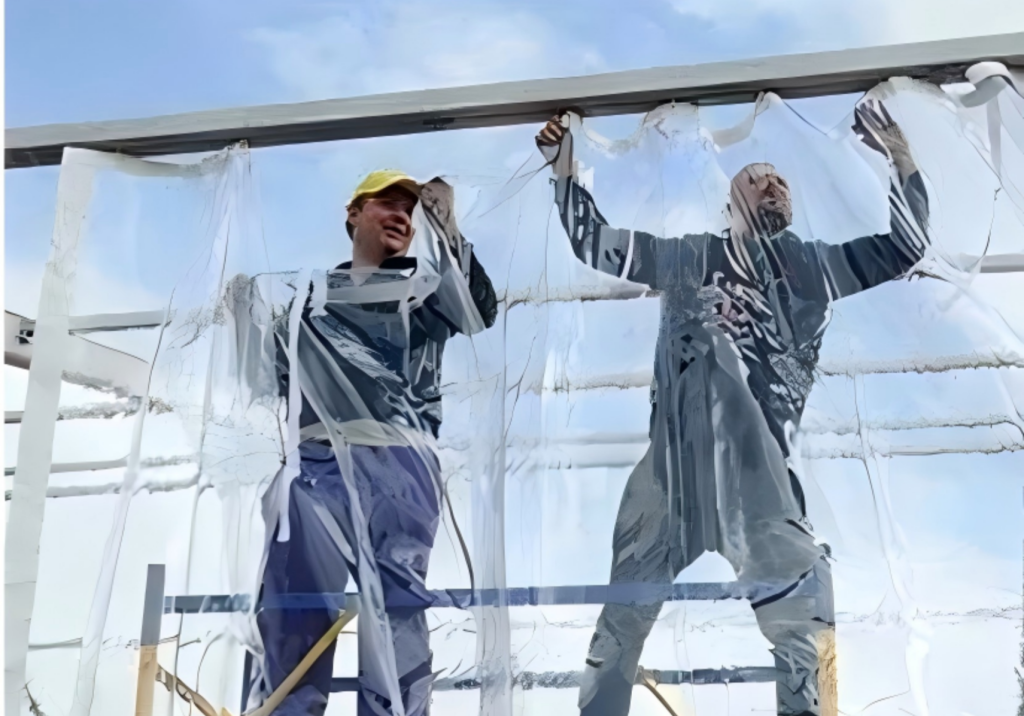

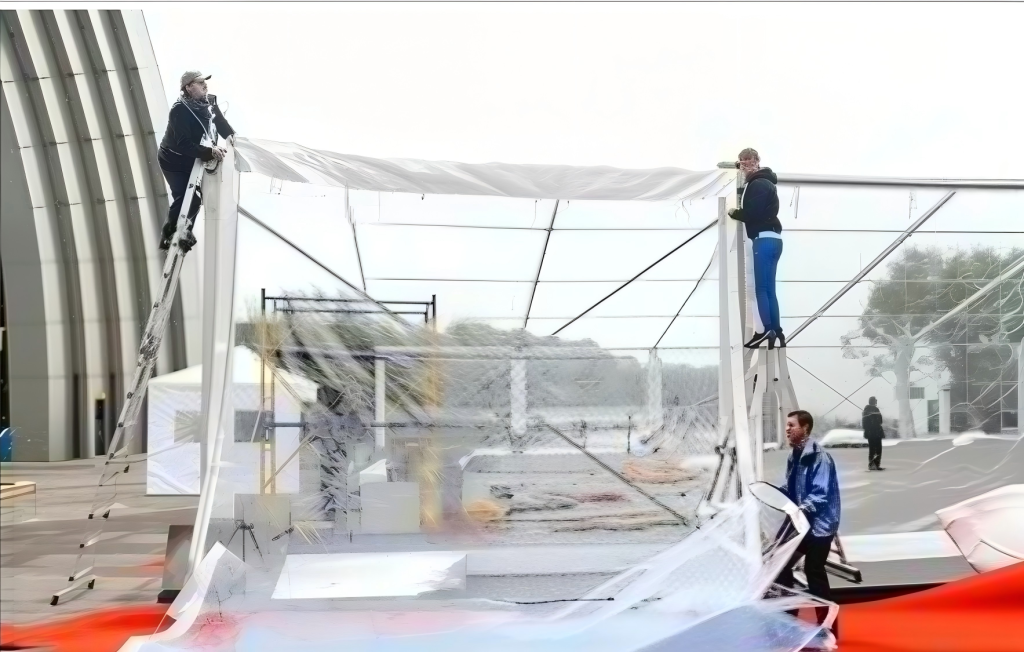

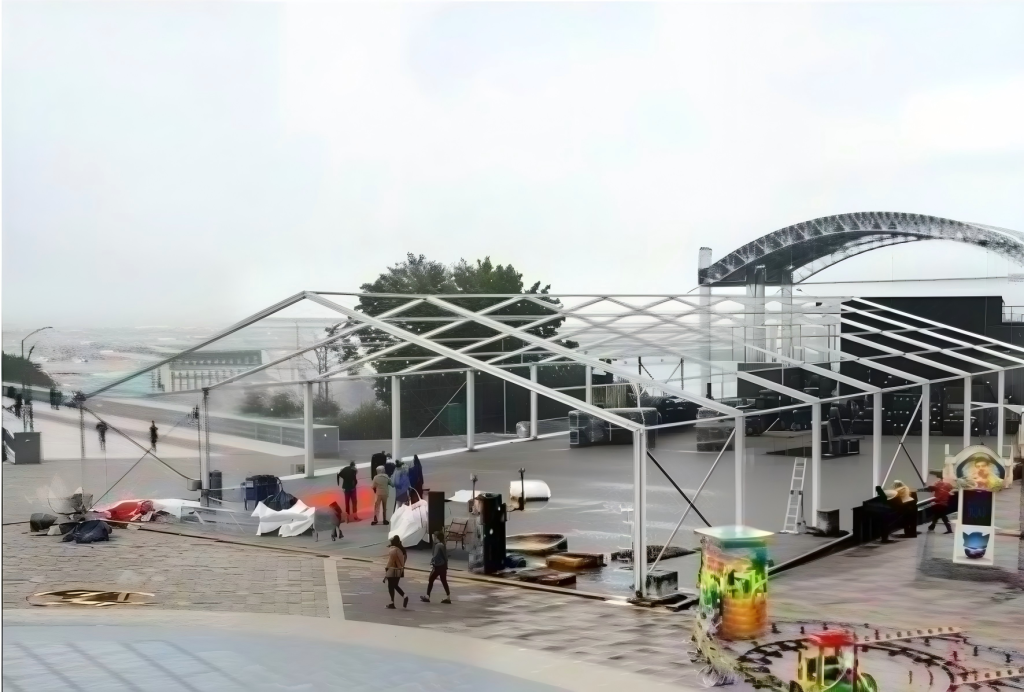

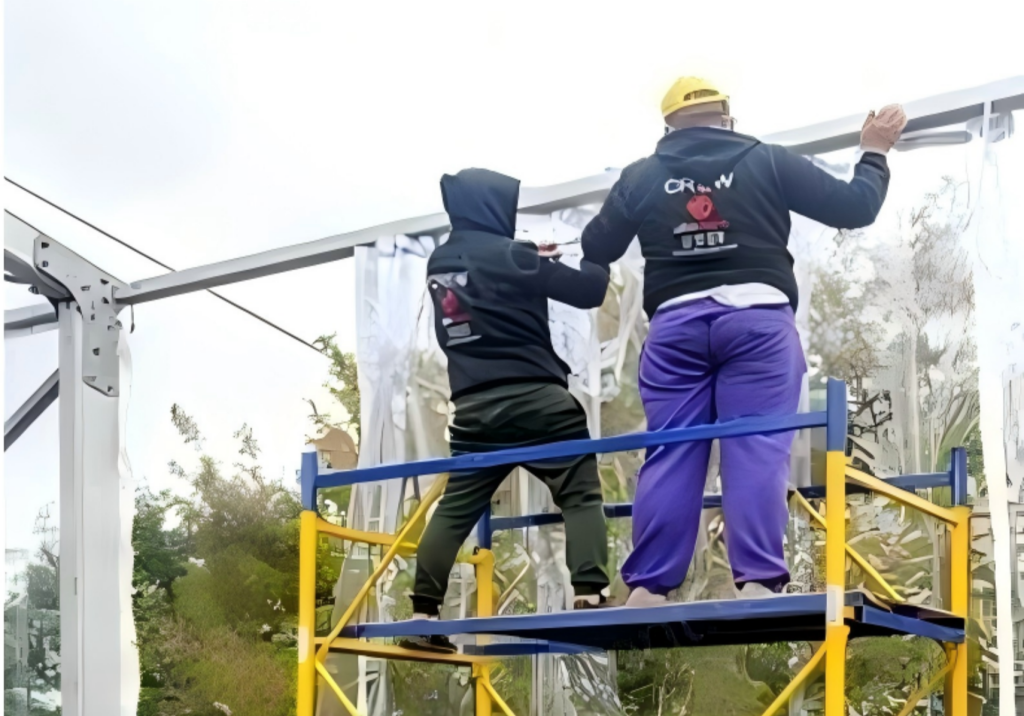

Erect Frame and install roof fabric

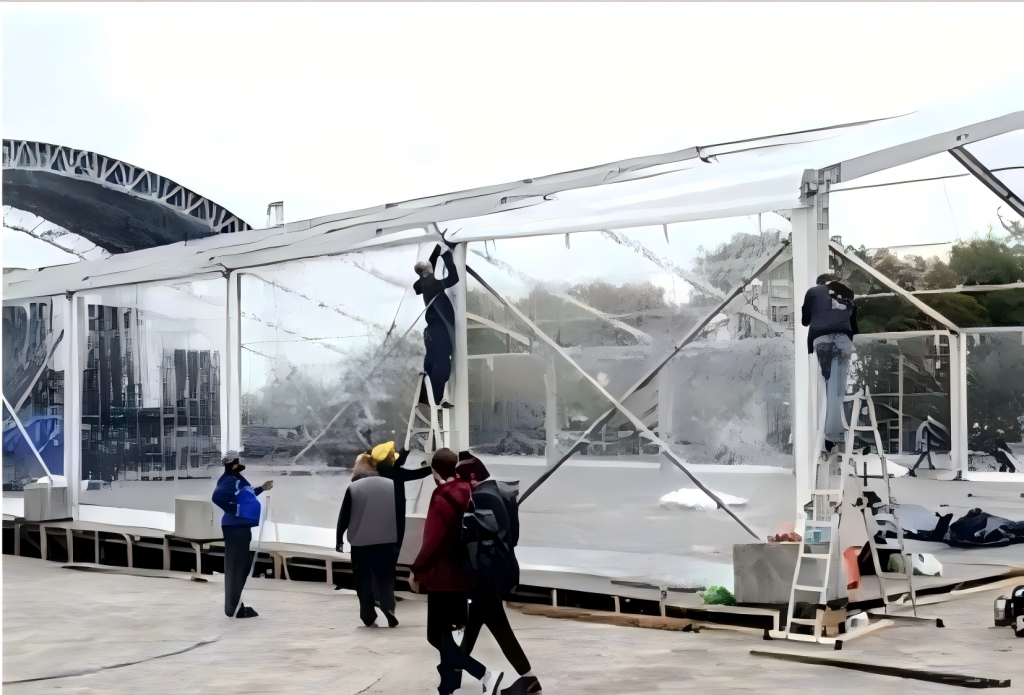

Install side walls & Decor
Changzhou Junming Tent Manufacturer Co., LTD was established in 2012 and has since grown into a professional enterprise specializing in the design, manufacturing, sales, and rental of high-quality aluminum structure tent systems.
We are recognized as one of the largest production bases for tents in Changzhou, China. With over 14 years of industry experience, we have built a strong reputation for quality, reliability, and innovation.
Our team includes a dedicated professional design department capable of creating customized solutions for a wide range of applications — from wedding banquets and corporate events to large-scale exhibitions and temporary warehouses.
Whether you need a standard tent or a fully customized structure, our in-house design and engineering capabilities ensure that every product meets the highest standards of safety, durability, and performance.
Learn more about customized clear marquee for event.
Please feel free to contact us at any time. We sincerely invite you to visit our company.
