Temporary Structure Tent
Professional warehouse tent, wedding event marquee & sports venue hall

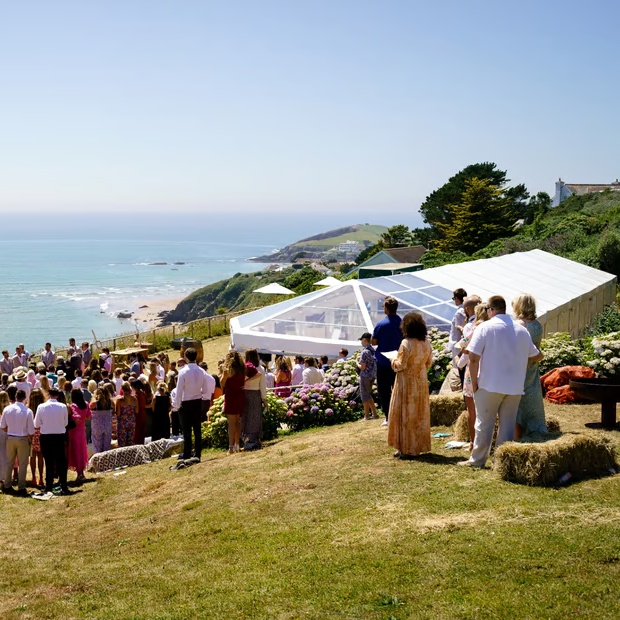

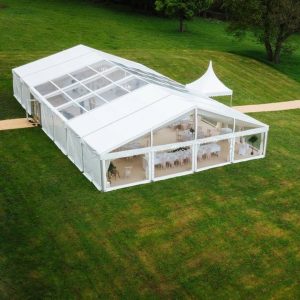

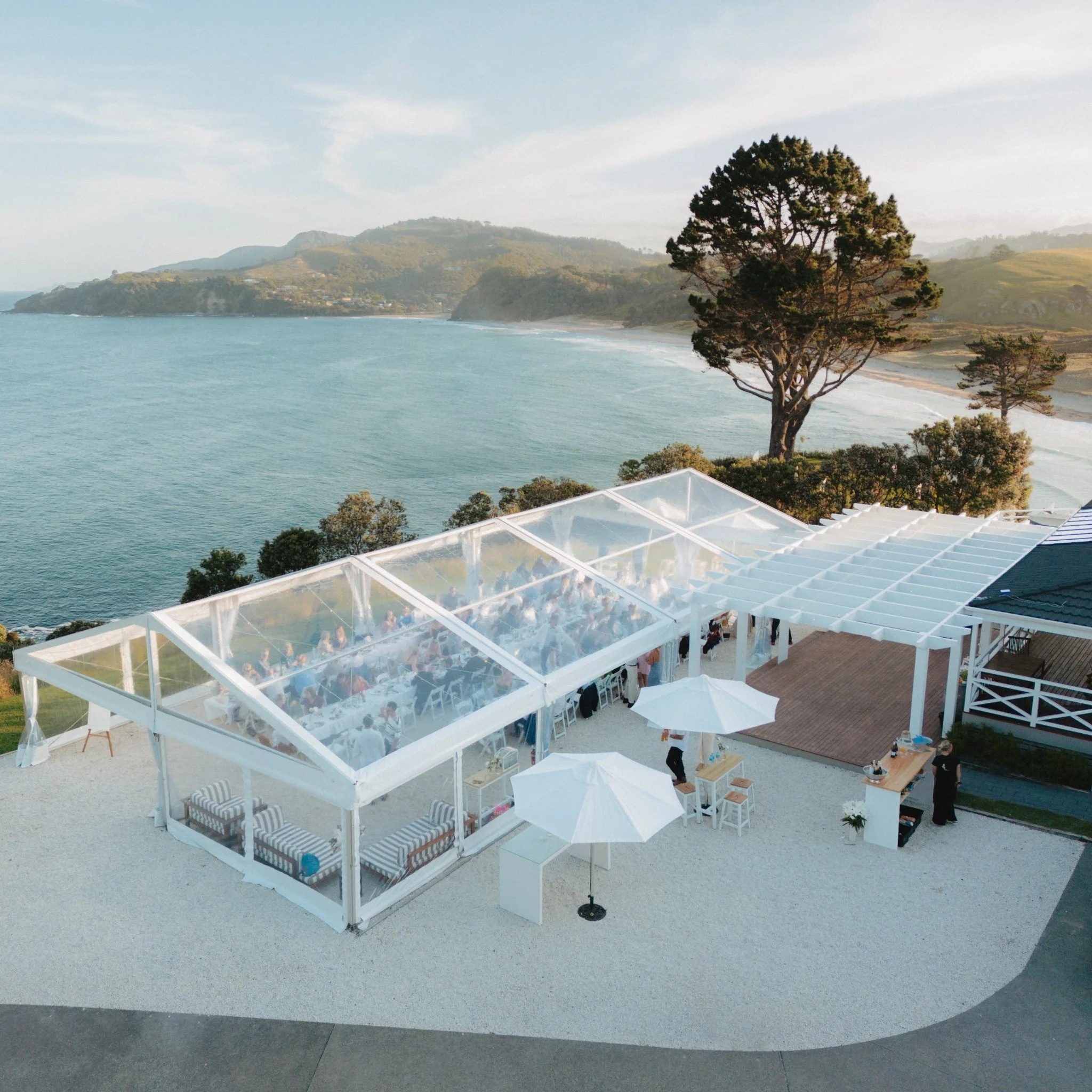

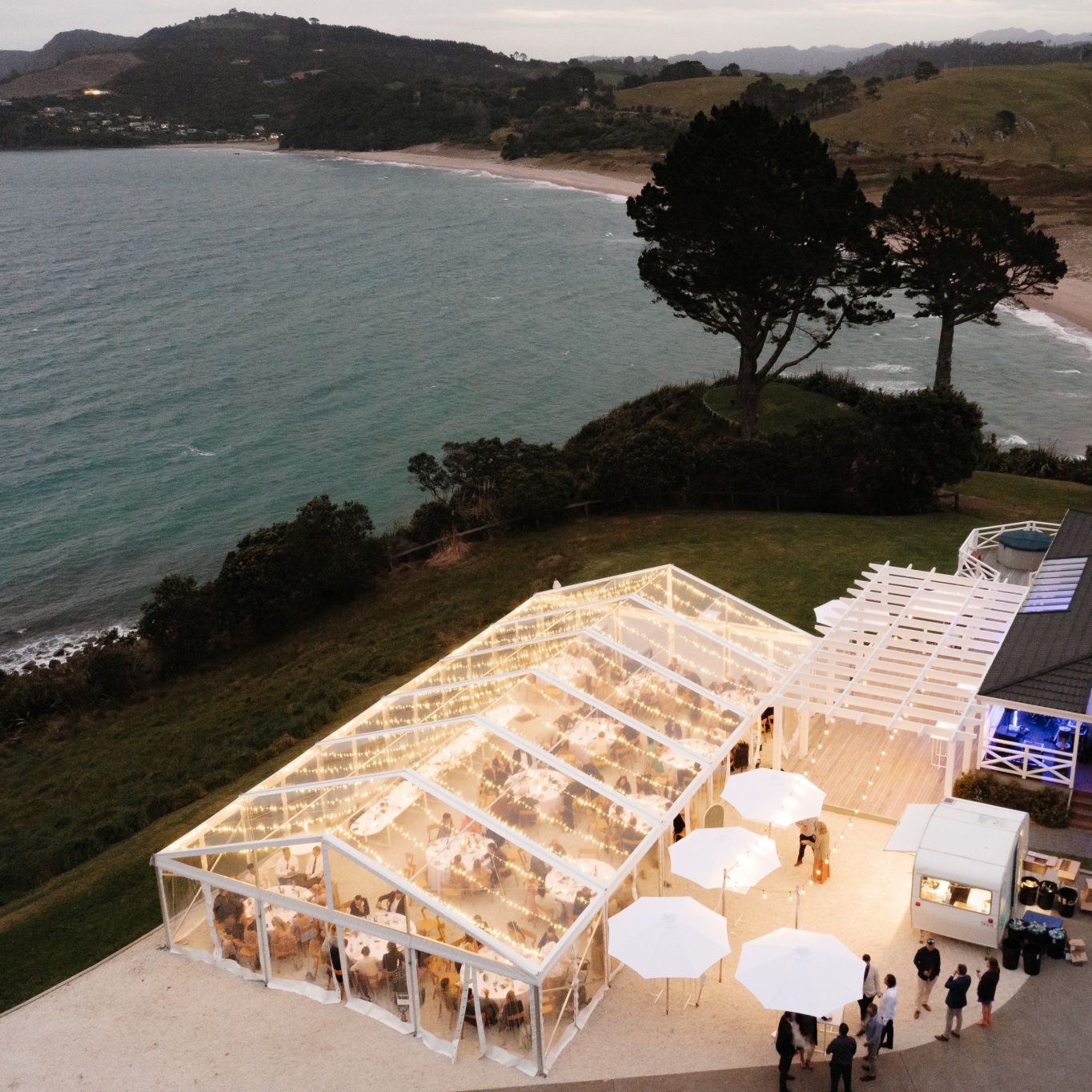

If you want to hold an unique party or wedding, the clear roof marquee tent is a perfect solution. You can appreciate the sky, moon and stars under transparent roof. that will give the guests a comfortable, fashionable and romantic experience.
The span width is from 6m to 50m, length is not limited but extend modular in increments of 5m, it can accommodate 100,200,300,500,1000,2000 capacity as your requirements. And different from other structures, there is no columns in our clear roof marquee tent and 100% inside space utility.
The clear roof marquee tent is made of hard pressed extruded aluminium and heavy duty waterproof transparent PVC fabric, flame retardant, UV resistant, anti-mildew and self-cleaning. It is a strong and durable structure to be safe enough under the big wind and rain weather.
JUNMING TENT can provide variety of optional accessories to decorate this clear roof marquee tent. It can be equipped with glass walls and double wing glass doors at entrance. The clear roof marquee tent can combine different natural elements and human factors with linings and curtains, flowers, furniture, etc., it will make your outdoor wedding or party more dreamlike and impressive.
Frame System-Stability & Longevity
Main Profile: High-strength Aluminum Alloy 6061/T6.
Connection: Hot-dip galvanized steel components.
Wind Load: 100 km/h – 120 km/h .
Snow Load: 0.5kn/㎡.
Lifespan: 20+ years for the aluminum frame.
Feature: Modular design, no welding required, 100% relocatable.
Premium PVC Fabric Protection
Roof Cover: Weight 850g/sqm (Block-out / Opaque).
Sidewall: Weight 650g/sqm (Translucent) or 850g/sqm.
Fire Safety: DIN 4102 B1, M2; CFM certified.
Temperature Resistance: -30°C to +70°C.
Key Features: Waterproof, UV-resistant, Tear-resistant, Anti-mildew.
Specifications
Span width:From 3 meters to 50 meters
Eave height:Standard from 2.5m, 3m, 4m to 5m upon width(or special height per requested)
Length:Unlimited, extended by 3m or 5m each bay
| Type | Width (m) | Bay distance (m) | Eave height (m) | Ridge height (m) | Main frame profile (mm) |
| JMEXT6 | 6 | 3 | 3 | 4 | 48x84x3/48x100x3 |
| JMWPT8 | 8 | 3 | 3 | 4.4 | 48x84x3/48x100x3 |
| JMWPT12 | 12 | 5 | 3.5 | 5.4 | 68x122x3 |
| JMWPT15 | 15 | 5 | 4 | 6.4 | 108x150x3/88x166x3 |
| JMWPT18 | 18 | 5 | 4 | 6.9 | 112x203x4/108x150x3 |
| JMWHT25 | 25 | 5 | 4 | 8 | 112x203x4.5 |
| JMWHT30 | 30 | 5 | 5 | 9.8 | 113x259x5 |
| JMWHT35 | 35 | 5 | 5 | 10.2 | 120x300x5 |
| JMWHT40 | 40 | 5 | 6 | 12.4 | 125x300x5 |
| JMWHT50 | 50 | 5 | 6 | 14 | 120x350x5.5 |
| The length can be extended by 5m bay such as 10m,15m,20m,25m,30m… | |||||
Optional Accessories
