Temporary Structure Tent

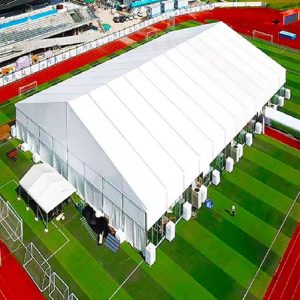

Professional warehouse tent, wedding event marquee & sports venue hall

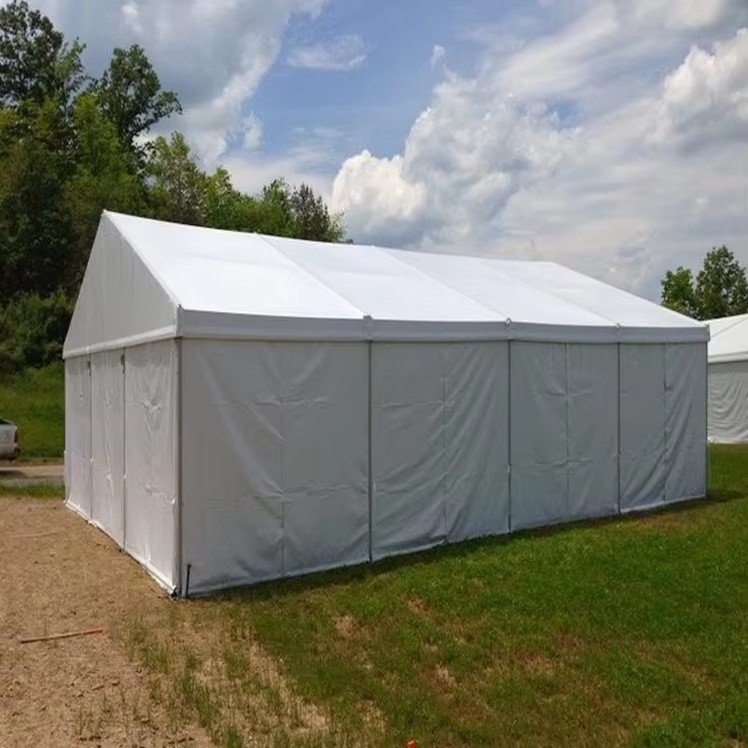

9x12m Clear Span Tent for Outdoor Events
Specifications
Span width:From 3 meters to 50 meters
Eave height:Standard from 2.5m, 3m, 4m to 5m upon width(or special height per requested)
Length:Unlimited, extended by 3m or 5m each bay
| Type | Width (m) | Bay distance (m) | Eave height (m) | Ridge height (m) | Main frame profile (mm) |
| JMEXT6 | 6 | 3 | 3 | 4 | 48x84x3/48x100x3 |
| JMWPT8 | 8 | 3 | 3 | 4.4 | 48x84x3/48x100x3 |
| JMWPT12 | 12 | 5 | 3.5 | 5.4 | 68x122x3 |
| JMWPT15 | 15 | 5 | 4 | 6.4 | 108x150x3/88x166x3 |
| JMWPT18 | 18 | 5 | 4 | 6.9 | 112x203x4/108x150x3 |
| JMWHT25 | 25 | 5 | 4 | 8 | 112x203x4.5 |
| JMWHT30 | 30 | 5 | 5 | 9.8 | 113x259x5 |
| JMWHT35 | 35 | 5 | 5 | 10.2 | 120x300x5 |
| JMWHT40 | 40 | 5 | 6 | 12.4 | 125x300x5 |
| JMWHT50 | 50 | 5 | 6 | 14 | 120x350x5.5 |
| The length can be extended by 5m bay such as 10m,15m,20m,25m,30m… | |||||
Frame System-Stability & Longevity
Main Profile: High-strength Aluminum Alloy 6061/T6.
Connection: Hot-dip galvanized steel components.
Wind Load: 100 km/h – 120 km/h .
Snow Load: 0.5kn/㎡.
Lifespan: 20+ years for the aluminum frame.
Feature: Modular design, no welding required, 100% relocatable.
Premium PVC Fabric Protection
Roof Cover: Weight 850g/sqm (Block-out / Opaque).
Sidewall: Weight 650g/sqm (Translucent) or 850g/sqm.
Fire Safety: DIN 4102 B1, M2; CFM certified.
Temperature Resistance: -30°C to +70°C.
Key Features: Waterproof, UV-resistant, Tear-resistant, Anti-mildew.
Optional Accessories
