Temporary Structure Tent
Professional warehouse tent, wedding event marquee & sports venue hall

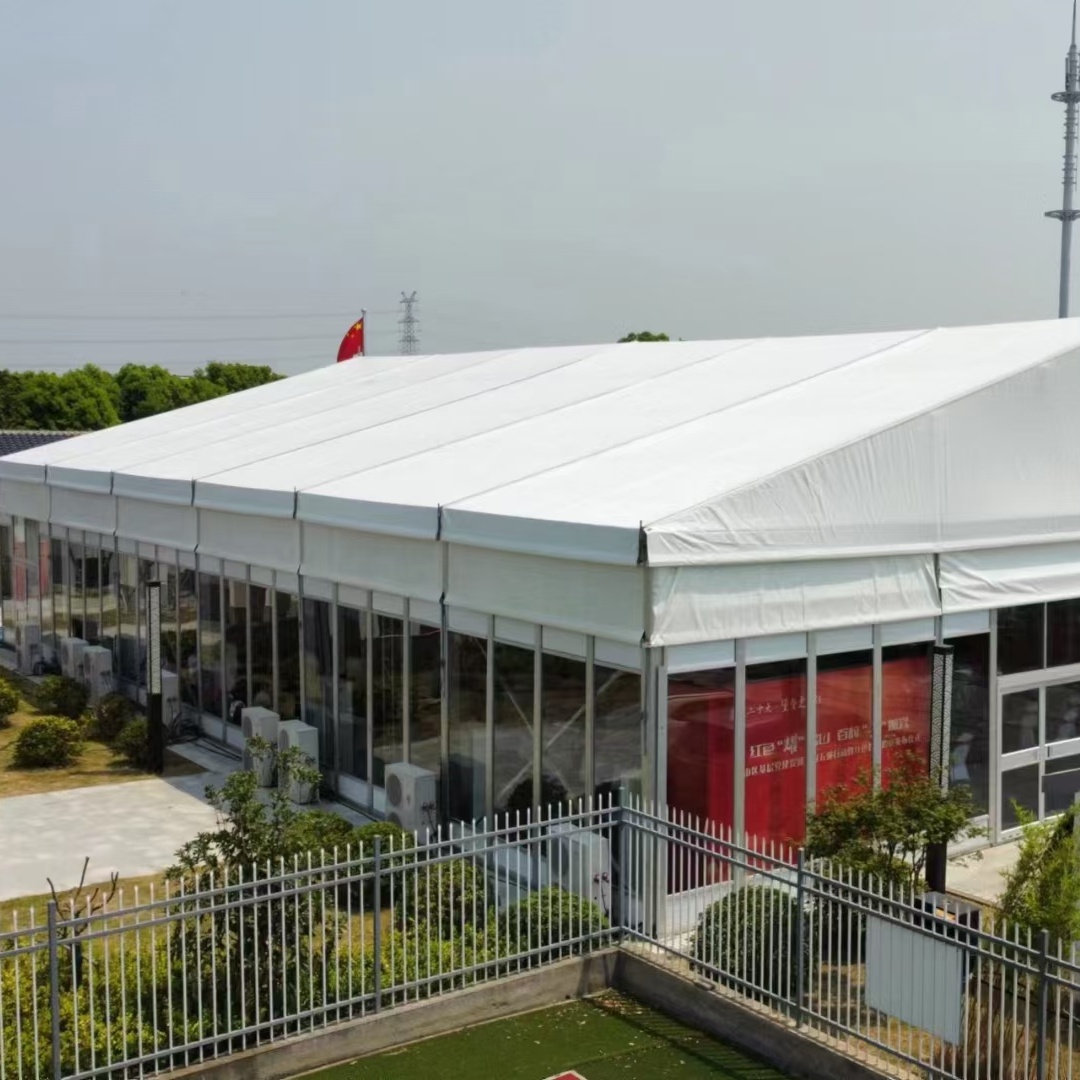

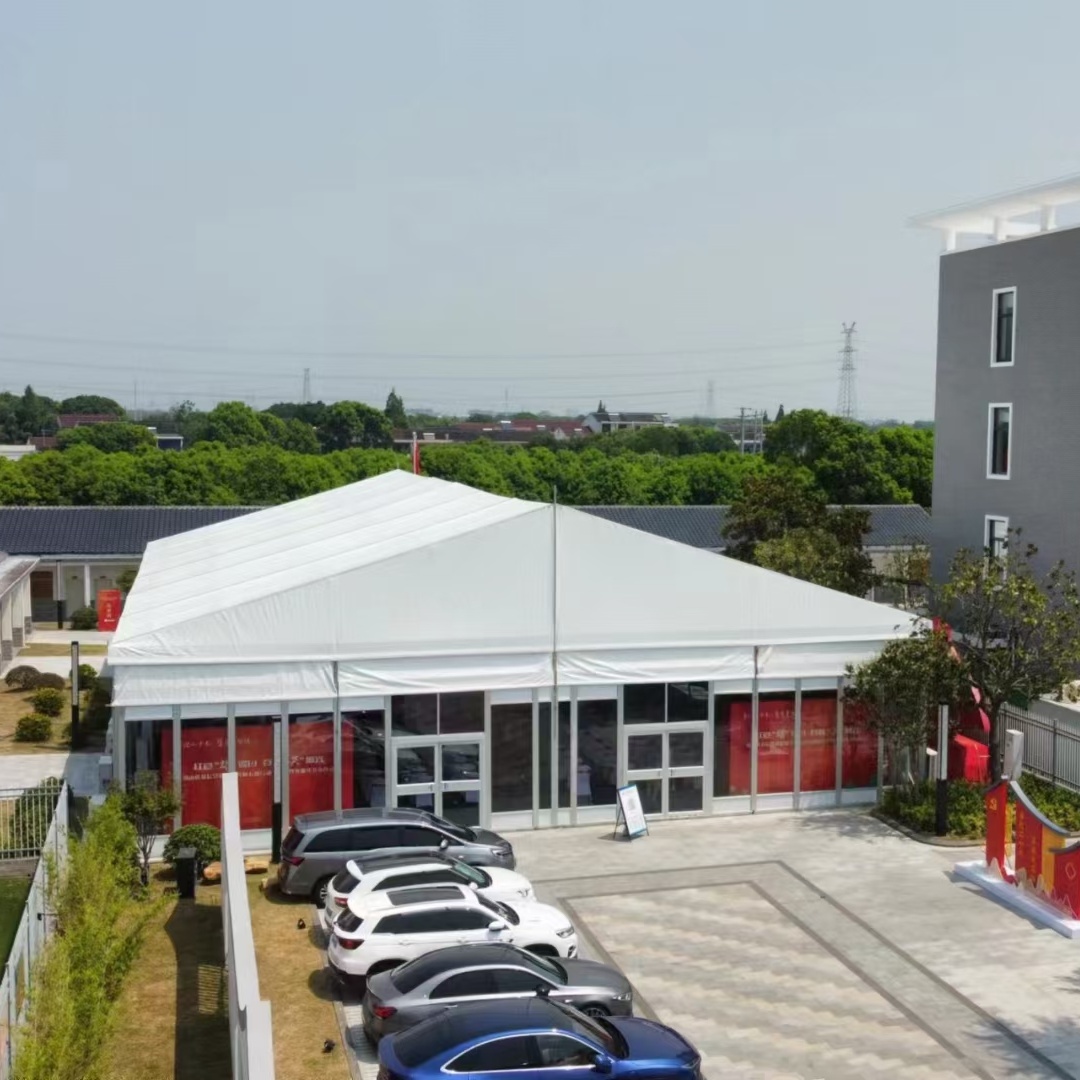

Large Aluminum A Frame Marquee Tent with Glass Walls
Key Features
✅ Heavy-Duty 6061-T6 Aluminum Frame High strength extruded aluminum alloy frame, rust-proof and long service life. Modular bolt assembly, easy to erect, disassemble and relocate. No inner columns to block space.
✅ Full Tempered Glass Wall System Clear tempered glass side walls bring plenty of natural daylight and panoramic views. Equipped with glass double swing doors for convenient entry. Glass walls provide great thermal insulation and wind resistance.
✅ Premium White PVC Roof High-quality PVC coated polyester fabric roof, waterproof, UV resistant and flame retardant. Stable in all weather conditions. Air conditioning can be installed for year-round use.
✅ Customizable Size & Accessories Custom clear span, length, height available. Optional accessories: air conditioner system, flooring, lighting, curtains, solid PVC walls, transparent PVC windows.
✅ Wide Application Scenarios Exhibition halls, conference centers, banquet venues, product launch events, temporary office buildings, visitor reception centers, car show pavilions, outdoor function halls. It is an economical alternative to brick-and-mortar buildings, requires minimal foundation work.
Product Specifications
- Frame Material: 6061-T6 Extruded Aluminum Alloy
- Roof Material: 850~1200g/sqm PVC Fabric, Waterproof, Anti-UV, Fire Retardant
- Wall Option: Tempered Glass Walls (PVC solid/transparent walls optional)
- Structure: A Frame / Gable Marquee, pillar-free interior
- Installation: Modular bolt connection
- Lifespan: Aluminum frame >15 years; PVC fabric roof: 5–8 years
- Customization: Span, length, doors, windows, interior decorations, HVAC system
Why Choose Our A-Frame Glass Marquee?
Our aluminum glass marquee offers a flexible semi-permanent commercial space. The pillar-free interior lets you freely arrange exhibition booths, seating or display areas. We provide one-stop service including 3D design, production, installation guidance and after-sales support.
Product Specifications
| Type | Width (m) | Bay distance (m) | Eave height (m) | Ridge height (m) | Main frame profile (mm) |
|---|---|---|---|---|---|
| JMT-3 | 3 | 3 | 2.5 | 2.8 | 48x84x3 |
| JMT-6 | 6 | 3 | 2.5 | 3.2 | 48x84x3 |
| JMT-8 | 8 | 3 | 2.5 | 3.6 | 48x84x3 / 48x100x3 |
| JMT-10 | 10 | 3/5 | 2.5 | 3.9 | 48x84x3 / 48x100x3 / 68x122x3 |
| JMT-12 | 12 | 5 | 3 | 4.7 | 68x122x3 |
| JMT-15 | 15 | 5 | 3 | 5 | 108x150x3 |
| JMT-18 | 18 | 5 | 4 | 6.5 | 108x150x3 / 112x203x3 |
| JMT-20 | 20 | 5 | 4 | 6.8 | 112x203x4 |
| JMT-25 | 25 | 5 | 4 | 7.3 | 112x203x4 |
| JMT-30 | 30 | 5 | 4 | 8 | 113x259x5 |
The length can be extended by 3m bay (e.g., 6m, 9m, 12m, 15m...) or 5m bay (e.g., 10m, 15m, 20m, 25m, 30m...).
Changzhou Junming Tent Manufacturer Co., LTD was established in 2012 and has since grown into a professional enterprise specializing in the design, manufacturing, sales, and rental of high-quality aluminum structure tent systems.
We are recognized as one of the largest production bases for tents in Changzhou, China. With over 14 years of industry experience, we have built a strong reputation for quality, reliability, and innovation.
Our team includes a dedicated professional design department capable of creating customized solutions for a wide range of applications — from wedding banquets and corporate events to large-scale exhibitions and temporary warehouses.
Whether you need a standard tent or a fully customized structure, our in-house design and engineering capabilities ensure that every product meets the highest standards of safety, durability, and performance.
Learn more about customized arcum marquee for event.
Please feel free to contact us at any time. We sincerely invite you to visit our company.
