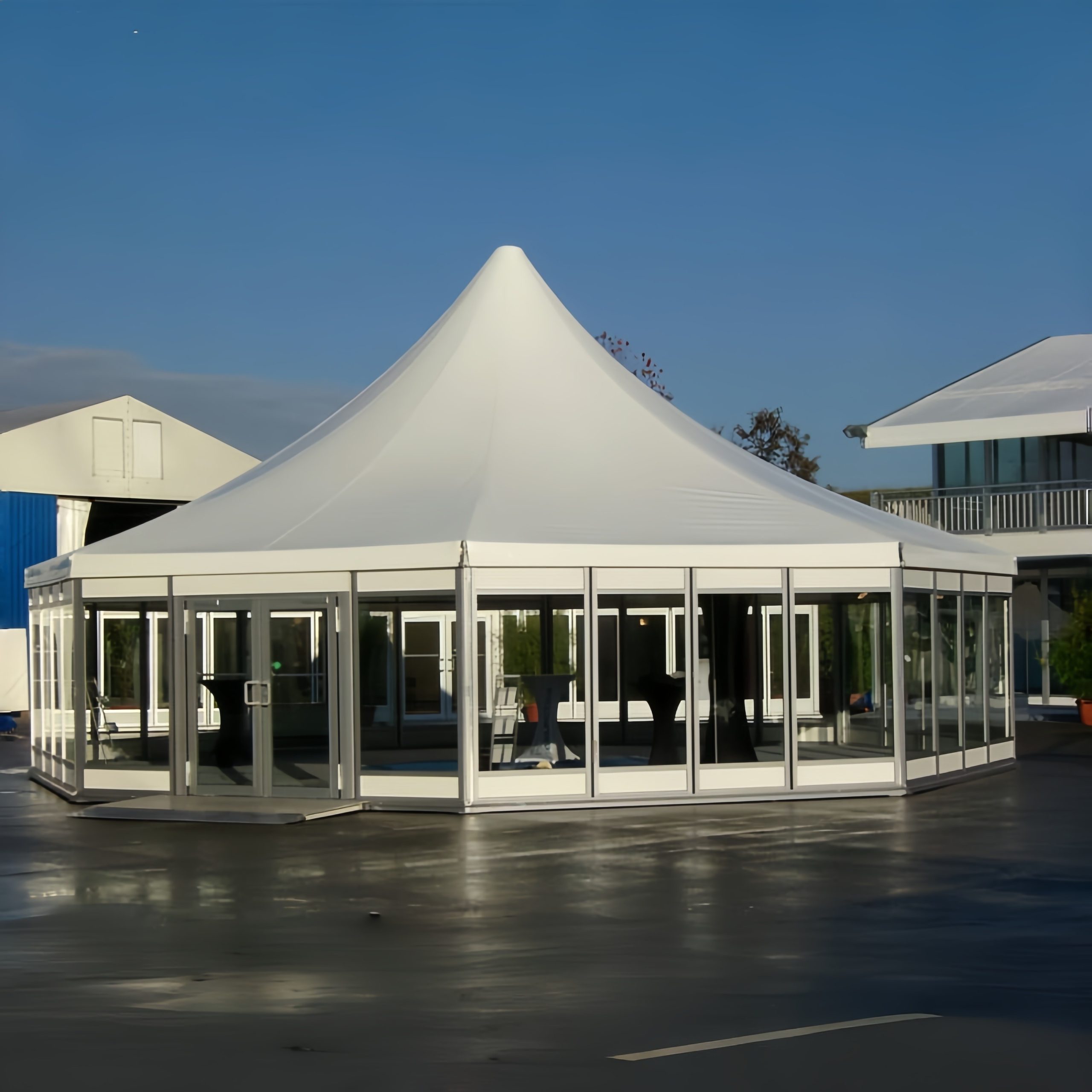

High Peak Multi Sides Tent for Circus Marquee

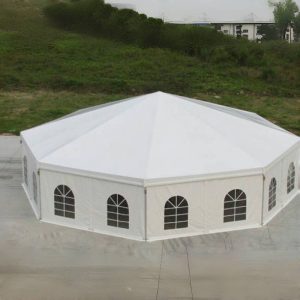

This circus marquee can be hexagon, octagon, decagon, dodecagon or even more sides. The roof can be flat shape or high peak shape. The maximum diameter of the multi-side tent can be 40m. Outdoor frame tents for weddings and luxury events offer a stylish and practical solution, combining durable weather-resistant materials with elegant multi-sided designs to create beautiful, spacious, and comfortable venues for any outdoor gathering.
Specifications
JMT Series — Multi-Side Tent
Hexagon · Octagon · Decagon · Dodecagon · Custom polygons | Flat or high-peak roof
| Model | Width (m) | Bay distance (m) | Eave height (m) | Ridge height (m) | Main frame profile (mm) |
|---|---|---|---|---|---|
| JMT-3 | 3 | 1.5 | 2.5 | 4.1 | 48x84x3 |
| JMT-4 | 4 | 2 | 2.5 | 4.6 | 48x84x3 |
| JMT-5 | 5 | 2.5 | 2.5 | 5.1 | 48x100x3 |
| JMT-6 | 6 | 3 | 2.5 | 5.6 | 68x122x3 |
| JMT-8 | 8 | 4 | 2.5 | 6.1 | 68x122x3 |
| JMT-10 | 10 | 5 | 3.0 | 7.1 | 68x122x3 |
| JMT-12 | 12 | 6 | 3.0 | 7.6 | 68x122x3 |
| JMT-15 | 15 | 7.5 | 3 / 4 | 8.1 / 8.6 | 68x122x3 |
✨
Custom sizes available — Need a specific diameter? Example: 7m width, 3m eave height, or any polygon shape.
Tailored solution
Competitive Advantage:
- Modular type, the tent can be extended or dismantled to several small tents.
- Easy to be assembled and dismantled.
- No pole inside, 100% space available.
- The aluminum frame will never get rusty with life span more than 15 years.
- The PVC cover is waterpprof, fireproof with life span 6-8 years.
- Can be used in bad circumstance.
Key Characters
| Frame part | Main parts: Aluminum alloy | Spare parts: Durable galvanized steel. All aluminum components are technically anodized and all steel parts are well hot-dip galvanized. |
|---|
| Cover part | The roof and sidewall cover: double coated PVC fabric. The weight of fabric is from 650g/sqm to 850g/sqm. |
|---|
| Side wall | Performance: Waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc. Material options: PVC wall, glass wall, sandwich panels, ABS panels, etc. |
|---|
| Fabric color option | White, transparent, green, yellow, red, blue, gray, black and customized |
|---|---|
| Applications | Wedding, events, temporary warehouse & workshop, exhibitions, church and other outdoor activities |
| Ground Situations | Grassland, sandy land, cement ground, marble ground, etc. |
|---|---|
| Fixing Solutions | Expansion screw, steel nail, weight plate, semi-permanent fixing, etc. |
| Wind load | 80-100km/h |
|---|---|
| Place of origin | Changzhou, China |

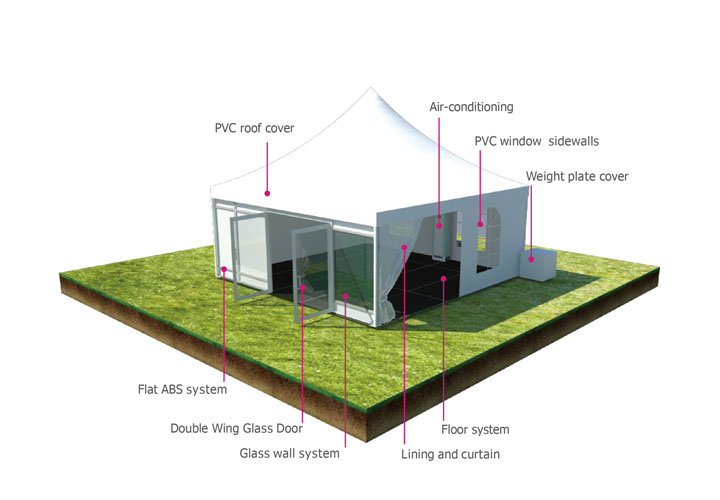

Optional Accessories:
Accessories:

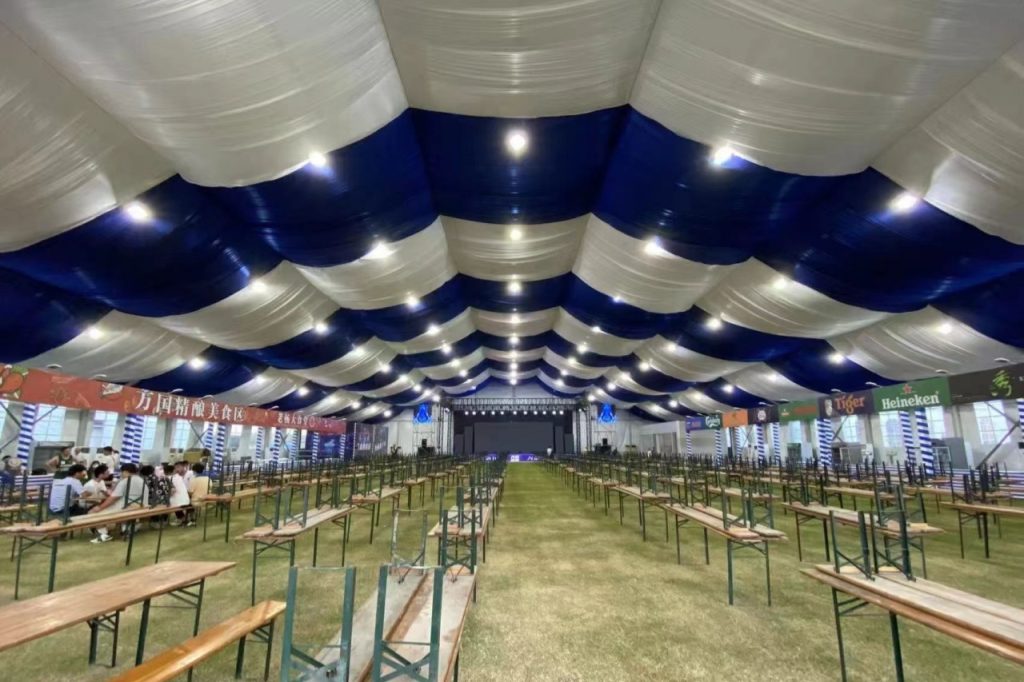

Drapery Curtains

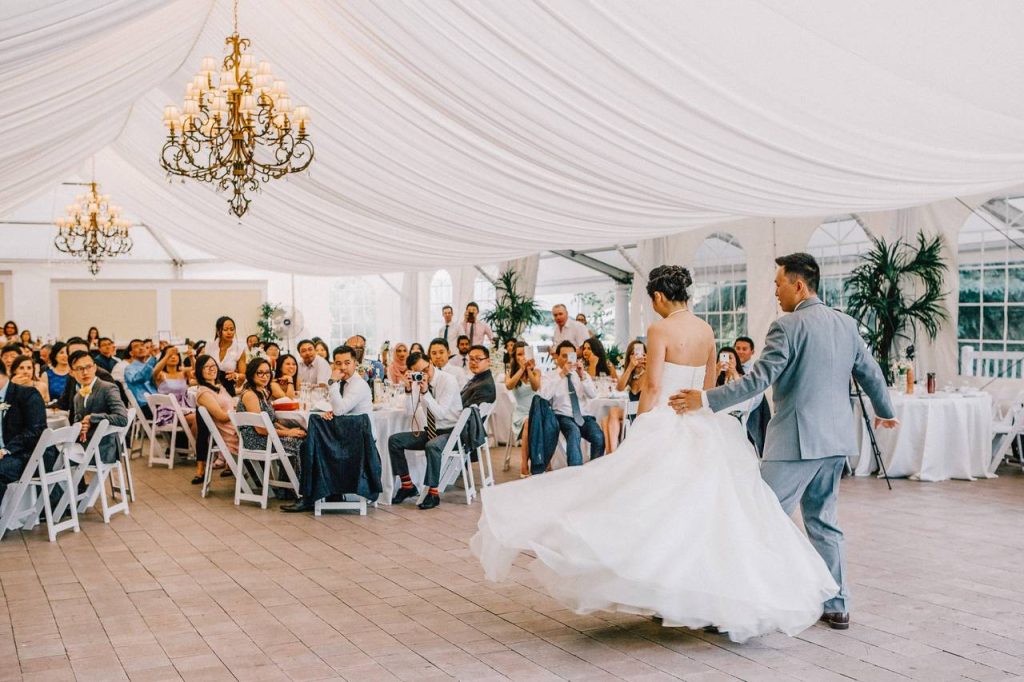

Ceiling Chandelier

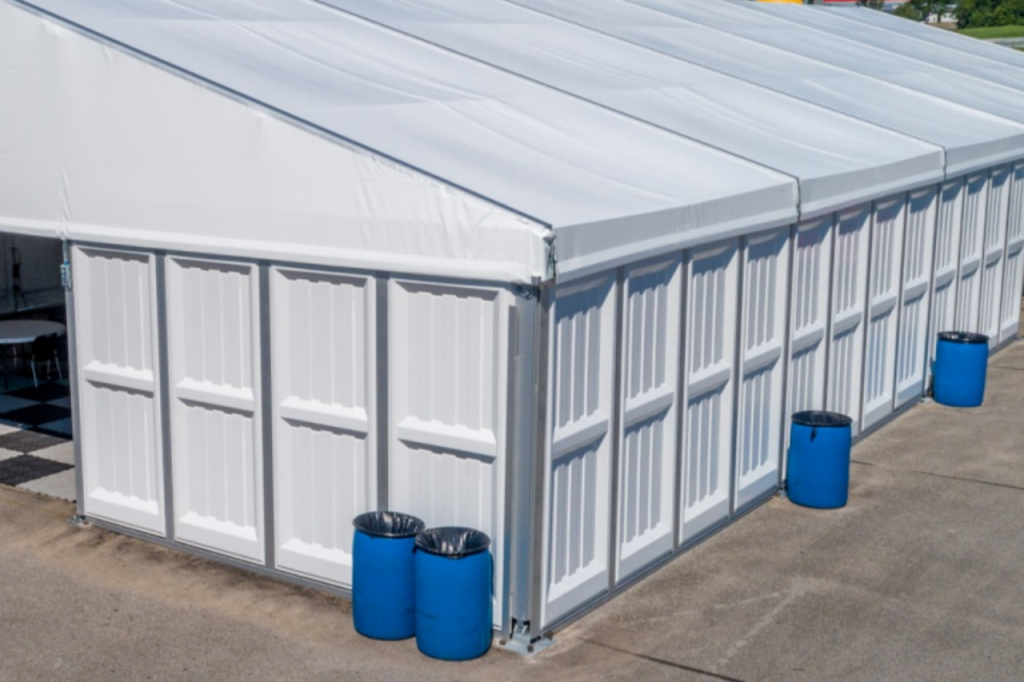

ABS Walls

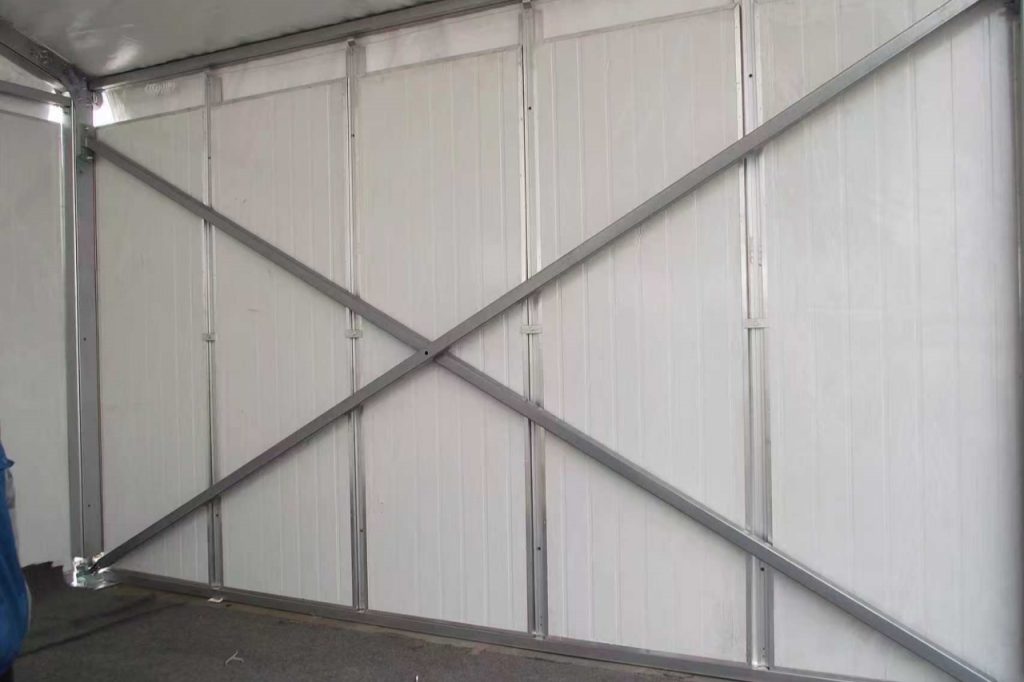

Sandwich Walls

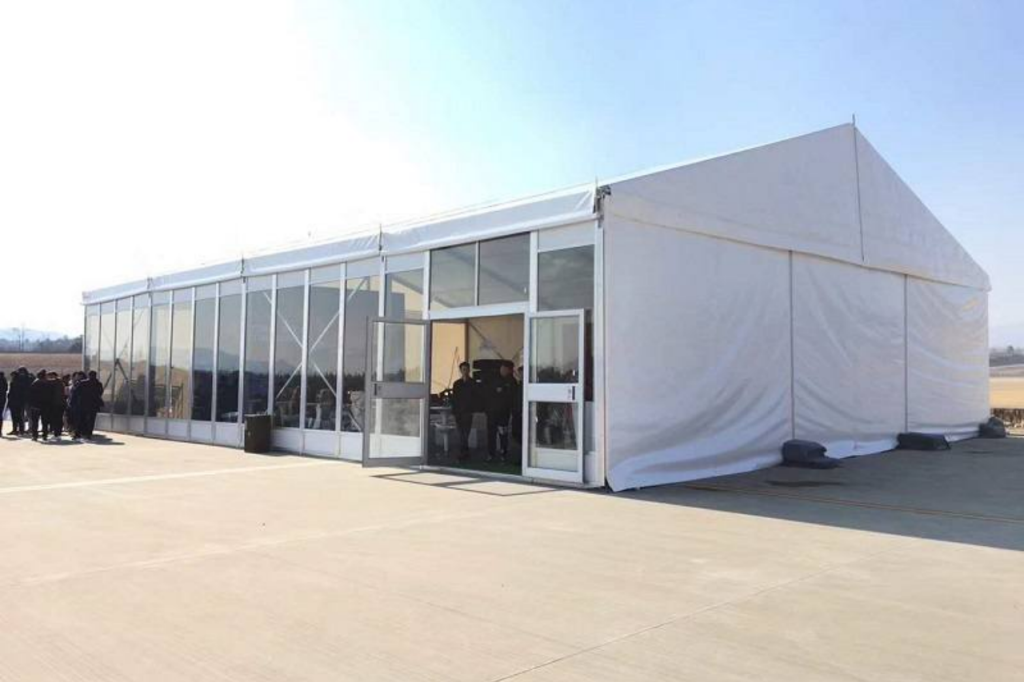

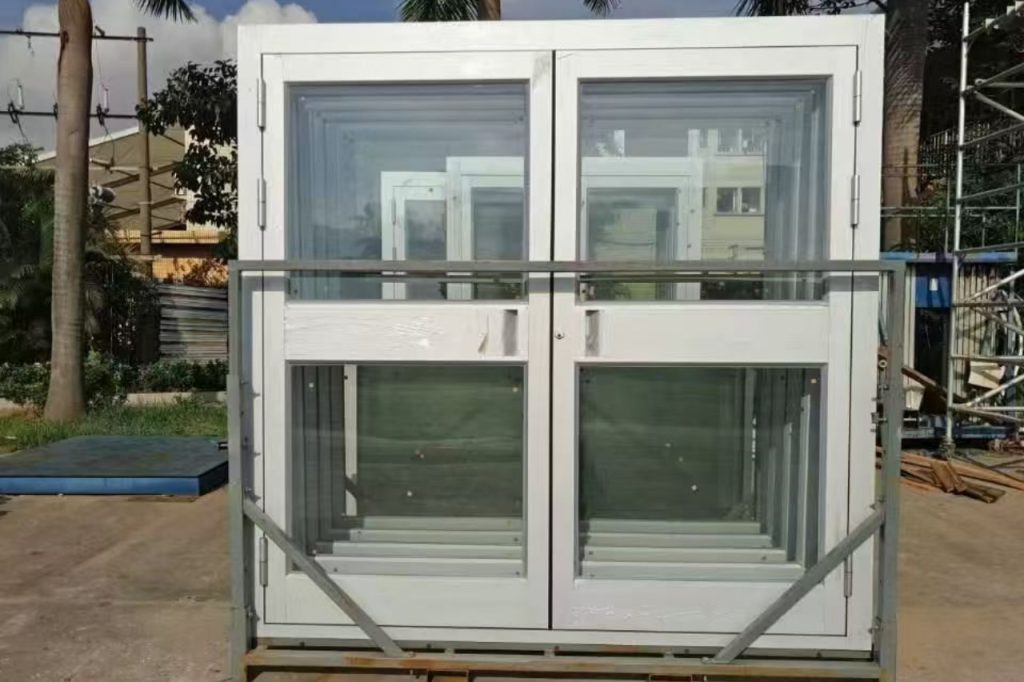

Glass Door
